Consulting
From factory floors to field tests, we'll be there to help. With over twenty years experience in developing and using lasers in a diverse range of applications, we are uniquely able to assist you in quantifying, analysing and modelling the challenges you face, with subsequently developed solutions tailored for optimal performance in your given environment.
Optical Equipment

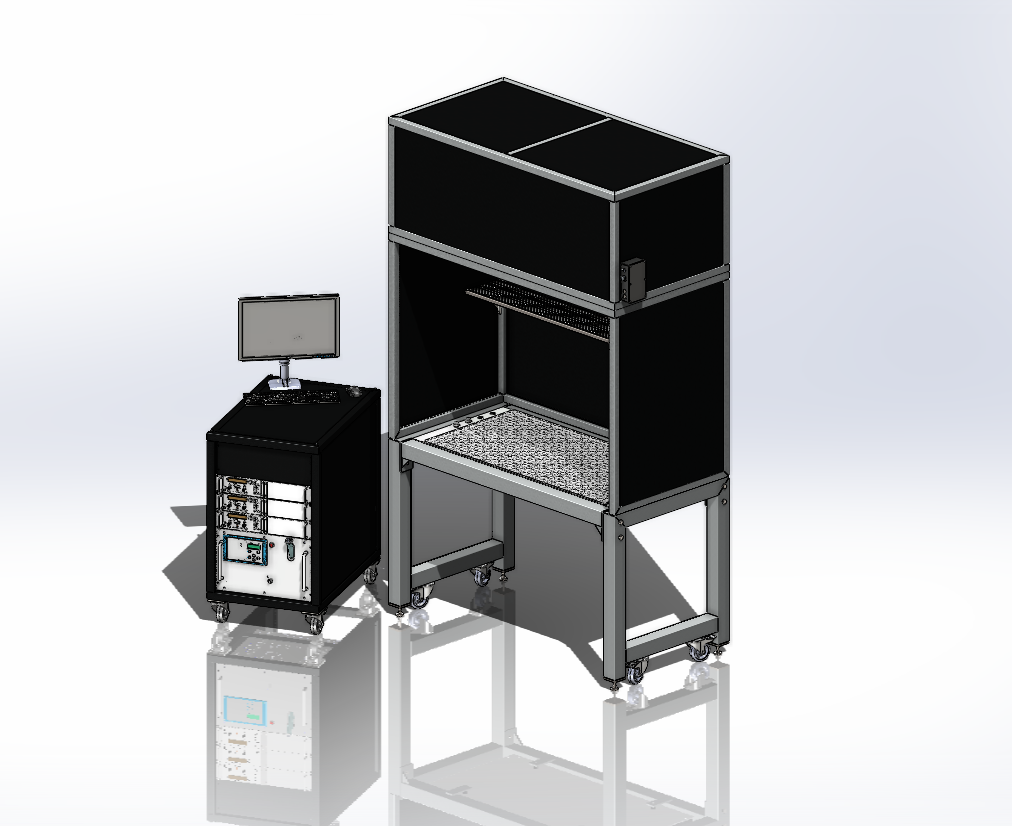

LazWorX Optical Bench
The LazWorX Optical Work Bench streamlines the assembly and testing of advanced lasers and opto-mechanical systems. Its compact, modular architecture and excellent workspace-to-footprint ratio enable multiple benches to be co-located within a limited space—allowing a single operator to assemble and test several systems in parallel.
To maintain pristine assembly conditions, the bench features energy-efficient, full-volume HEPA-grade (H13/14) vertical laminar airflow, significantly reducing the risk of dust intrusion. Integrated interlocks and optional monitoring systems support unattended qualification and long-duration lifetime testing.
At its core, a rigid, damped optical breadboard integrated with passive vibration isolation provides a stable platform for direct tabletop assembly of lasers and opto-mechanical systems for R&D applications.
Dimensions & Weight:
LazWorX Bench 1603 mm x 762 mm x 2490 mm, 255 kg
Work Area 1200 mm x 600 mm
Trolley 560 mm x 836 mm x 980 mm, 40 kg unpopulated
(Width x Depth x Height)
Air Filtration:
HEPA H13/H14 with pre-filter, 0.3—0.5 m.s-1 max, 150Pa-200Pa
Filter replacement sensing and indicator
Lighting:
Dual LED Dot-less Strip
Electrical Supply Requirements:
LazWorX bench 220-240 Vac 50Hz, 150 W typical.
Trolley — option dependent.
Finish:
Powder coat, Black & White Ferrograin
LazWorX Bench 1603 mm x 762 mm x 2490 mm, 255 kg
Work Area 1200 mm x 600 mm
Trolley 560 mm x 836 mm x 980 mm, 40 kg unpopulated
(Width x Depth x Height)
Air Filtration:
HEPA H13/H14 with pre-filter, 0.3—0.5 m.s-1 max, 150Pa-200Pa
Filter replacement sensing and indicator
Lighting:
Dual LED Dot-less Strip
Electrical Supply Requirements:
LazWorX bench 220-240 Vac 50Hz, 150 W typical.
Trolley — option dependent.
Finish:
Powder coat, Black & White Ferrograin
Options:
Integrated chiller with water flow interlocks
Integrated diagnostic PC
Laser Power Supply Units
Front laser barrier with interlocks and operation light
Lasers
